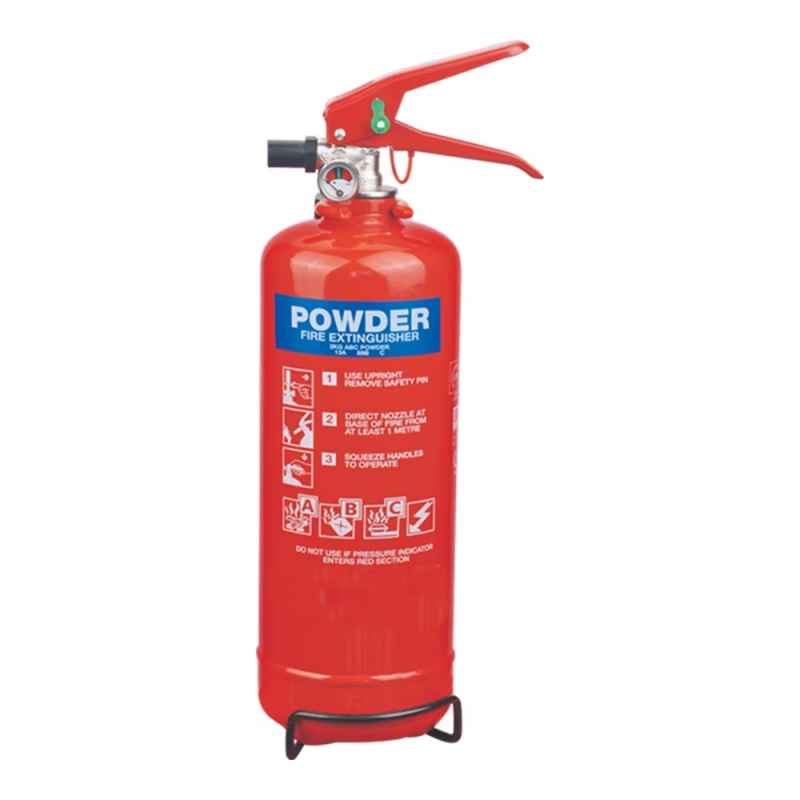

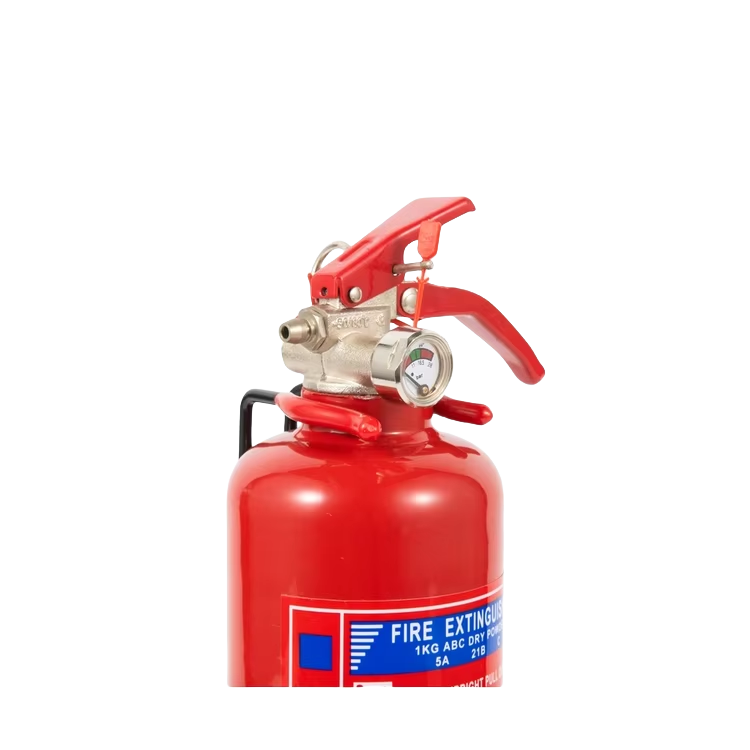

Powder Fire Extinguisher 1-2kg EN3
Specifications
| Product name | DCP dry powder extinguisher 1-2kg | ||
|---|---|---|---|
| 1KG | 2KG | 2KG | |
| Model | BW01-01 | BW01-02 | BW01-05 |
| Out-diameter | 85mm | 110mm | 110mm |
| Volume | 1.4L | 2.6L | 2.6L |
| Cylinder length | 280±5mm | 315±5mm | 315±5mm |
| Extinguisher weight | 2.0KG | 3.7KG | 3.7KG |
| Filling weight | 1±0.05KG | 2±0.06KG | 2±0.06KG |
| Temperature range | -30℃~+60℃ | -20℃~+60℃ | -20℃~+60℃ |
| Max working pressure | 18bar | 18bar | 18bar |
| Test pressure | 29bar | 29bar | 29bar |
| Min wall-thickness | 0.79mm | 1.07mm | 1.07mm |
| Material | SPCC | SPCC | SPCC |
| Fire Rate | 8A 34B C | 13A 34B C | 13A 55B C |
| Packing size(cm) | 29.5X20X36/6pcs | 25X25X42/4pcs | 25X25X42/4pcs |
| Manufacturing standard): | BS EN3-7:2004+A1:2007 | BS EN3-7:2004+A1:2007 | BS EN3-7:2004+A1:2007 |
| Certification | Kitemark EN3 | Kitemark EN3 | Kitemark EN3 |
