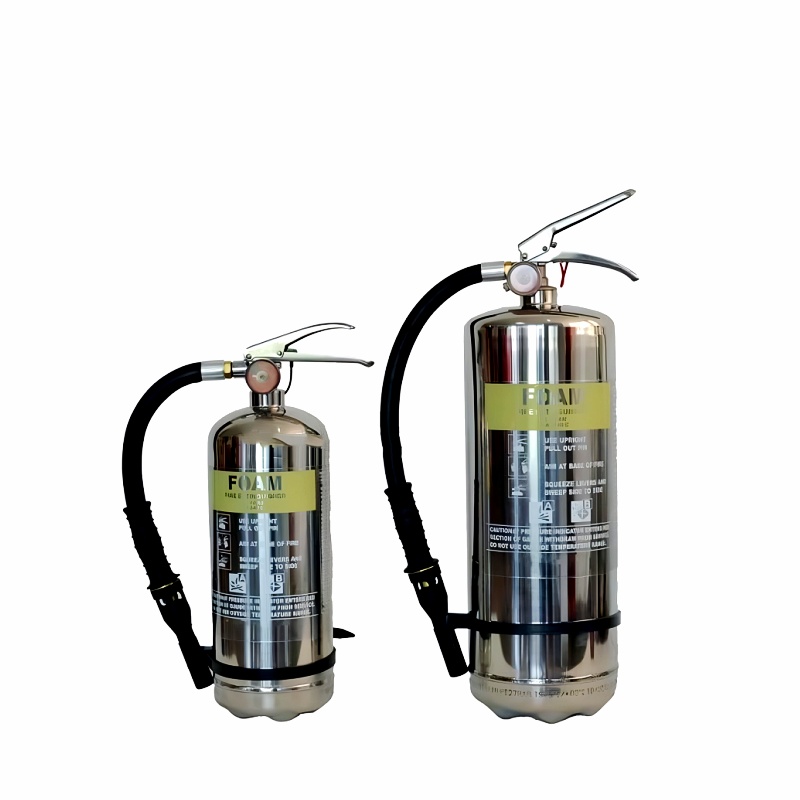

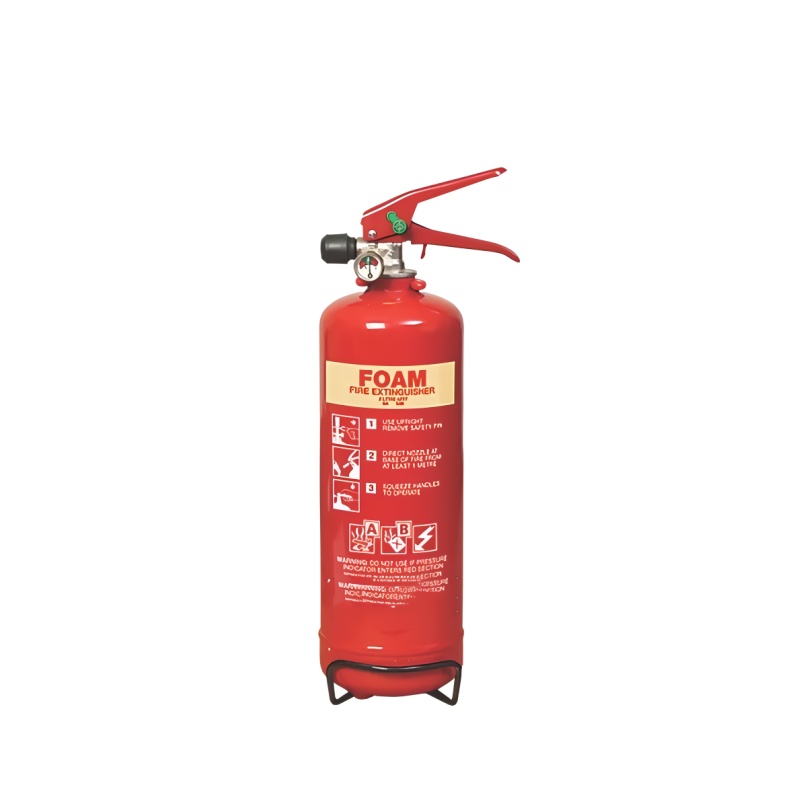

Foam Fire Extinguisher 2-10L ISO
Specifications
| Type A | Type B | ||||||
|---|---|---|---|---|---|---|---|
| Product name | Foam Fire Extinguisher | ||||||
| Model | BW06-01 | BW06-02 | BW06-03 | BW06-04 | BW06-05 | BW09-07 | BW09-08 |
| Capacity | 2L | 3L | 6L | 9L | 10 L | 6L | 9L |
| Out-Diamter( mm) | 110 | 130 | 160 | 180 | 185 | 156 | 172 |
| Cylinder Height(mm) | 315 | 335 | 445 | 510 | 545 | 470 | 550 |
| Volume(L) | 2.6 | 3.9 | 7.8 | 11.5 | 12.8 | 7.8 | 11.3 |
| GrossWeight(kg) | 3.7 | 5.2 | 9.3 | 13.5 | 14.8 | 9.3 | 14 |
| Cylinder Meterial | SPCC with inner coating | 304 Stainless | |||||
| Max Working Pressure(bar) | 18 | 18 | 18 | 18 | 18 | 18 | 18 |
| Test Pressure(bar) | 29 | 29 | 29 | 29 | 29 | 29 | 29 |
| Temperature Range | 5℃~+60℃ | 5℃~+60℃ | |||||
| Fire Rate | 8A34B | 13A34B | 21A144B | 27A183B | 34A183B | 21A 144B | 27A 183B |
| Packing Size(cm) | 25*25*42/4 | 14 .5*14*45 | 17.5*17*55 .5 | 19.5*19*62 | 20.5*19.5*65.5 | 17*17*54 | 19*19*64 |
