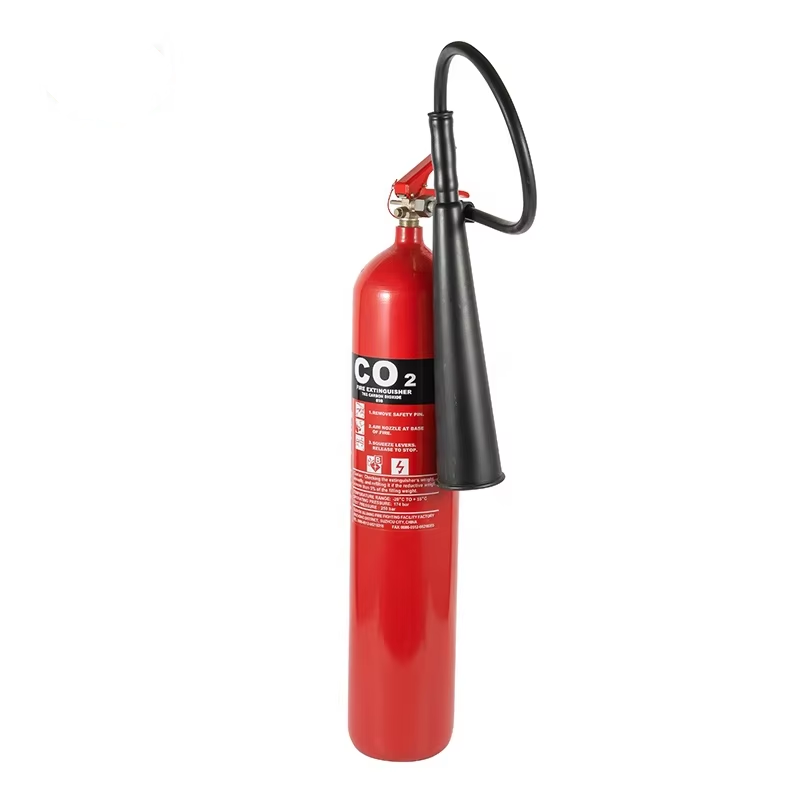

CO2 Fire Extinguisher 6-10KG ISO
Specifications
| Type A | Type B | Type C | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Product name | CO2 Fire Extinguisher | ||||||||
| Model | BW41-07 | BW41-08 | BW41-09 | BW04-08 | BW04-09 | BW04-10 | BW42-06 | BW42-04 | BW42-07 |
| Capacity | 6KG | 7KG | 10KG | 6kg | 7 kg | 9kg | 6KG | 7kg | 10kg |
| Out-Diamter( mm) | 136 | 154 | 154 | 152 | 152 | 152 | 159 | 140 | 159 |
| Cylinder Height(mm) | 770 | 695 | 975 | 650 | 740 | 930 | 580 | 838 | 960 |
| Volume(L) | 9 | 10.5 | 15 | 9 | 10.5 | 13.4 | 9 | 10 | 14.5 |
| GrossWeight(kg) | 9.1 | 10.44 | 14.65 | 21 | 23 | 30 | 14 | 14.6 | 20.5 |
| Cylinder Meterial | Alloy Steel,34 CrMo4 | Carbon Steel ， CK45 | |||||||
| Max Working Pressure(bar) | 174 | 174 | 174 | 174 | 174 | 174 | 174 | 174 | 174 |
| Test Pressure(bar) | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 |
| Temperature Range | -20℃~60℃ | ||||||||
| Fire Rate | 89B | 113 B | 113 B | 89B | 113 B | 113 B | 89B | 89B | 113B |
| Packing Size(cm) | 19*15.5*90 | 20.5*17*82 | 30*30*120 | 21* 17*79 | 20*17*86 | 20*17*100 | 21* 17 .5*70.5 | 19*15.5*96.5 | 30*30*120 |
