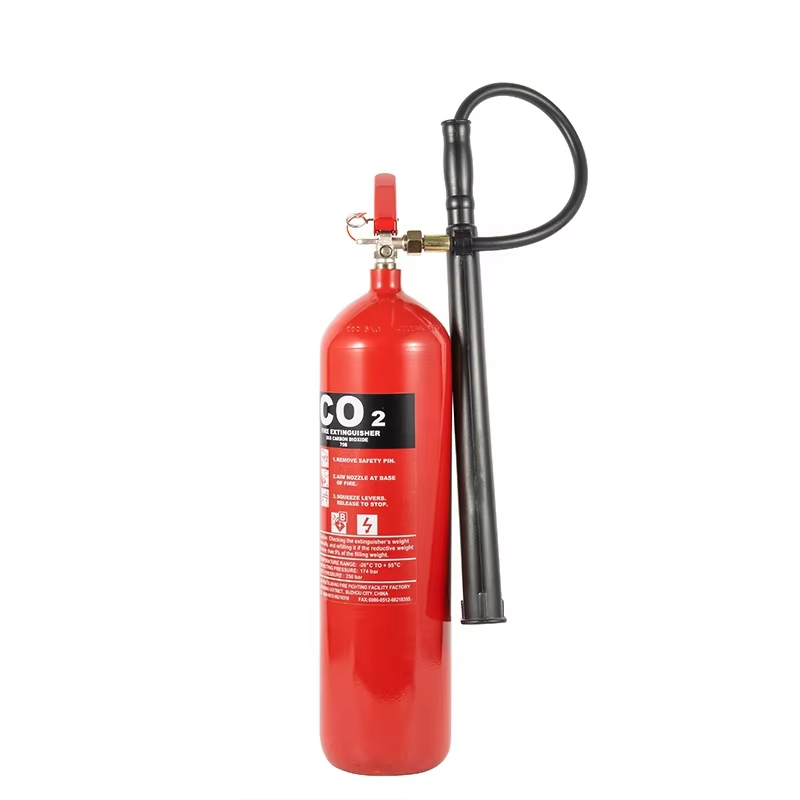

CO2 Fire Extinguisher 1-5KG ISO
Specifications
| Type A | Type B | Type C | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Product name | CO2 Fire Extinguisher | ||||||||||||||||
| Model | BW41-01 | BW41-02 | BW41-03 | BW41-04 | BW41-05 | BW41-06 | BW04-01 | BW04-02 | BW04-03 | BW04-04 | BW04-05 | BW04-06 | BW04-07 | BW42-01 | BW42-02 | BW42-03 | BW42-05 |
| Capacity | 1 .18 KG | 2KG | 3.2KG | 2KG | 5 KG | 3KG | 2 kg | 3kg | 3kg | 5kg | 4 kg | 4 .5kg | 5kg | 2kg | 3.5kg | 4.5kg | 4KG |
| Out-Diamter( mm) | 104 | 104 | 104 | 116 | 136 | 116 | 114 | 114 | 140 | 140 | 152 | 152 | 152 | 108 | 108 | 140 | 159 |
| Cylinder Height(mm) | 312 | 480 | 720 | 385 | 655 | 550 | 420 | 600 | 415 | 640 | 455 | 500 | 570 | 450 | 720 | 585 | 410 |
| Volume(L) | 1.78 | 3 | 4.85 | 3 | 7.5 | 4.5 | 3 | 4.5 | 4.5 | 7.5 | 6 | 7 | 7.5 | 3 | 5 | 6.8 | 6 |
| GrossWeight(kg) | 4.11 | 5.98 | 8.74 | 3.98 | 7.8 | 5.2 | 7.6 | 10.8 | 10.8 | 18 | 15.5 | 16.3 | 18 | 5.3 | 7.6 | 9.5 | 9.5 |
| Cylinder Meterial | Alloy Steel,34 CrMo4 | Carbon Steel ， CK45 | Alloy Steel , 37Mn | ||||||||||||||
| Max Working Pressure(bar) | 174 | 174 | 174 | 174 | 174 | 174 | 174 | 174 | 174 | 174 | 174 | 174 | 174 | 174 | 174 | 174 | 174 |
| Test Pressure(bar) | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 |
| Temperature Range | -20℃~60℃ | ||||||||||||||||
| Fire Rate | 21B | 34B | 34B | 34B | 89B | 34B | 34B | 34B | 34B | 89B | 70B | 70B | 89B | 34B | 34B | 70B | 70B |
| Packing Size(cm) | 25.5*12*41.5 /2 | 25.5*12*59 /2 | 14.9*12*84.5 | 16.5*13*50 | 19*15.5*78 | 16.5* 13*67.5 | 56* 17*13 | 71*17*13 | 57*19* 16 | 76*19*16 | 21*17*60 | 21*17*65 | 20*17* 69 | 15.5*12 .5*58 | 15.5*12 .5*85 | 19*15.5*71 | 21* 17.5*53 .5 |
